Sound Lab ULTIMATE Panel And Wiring

Ray Wilson authored this content while he was actively running MFOS as the founder and resident genius.
We retain the content because it reflects a valuable point of view representing that time and place.

Article by Ray Wilson

Corrections and Errata

PC Board and Panel Plate Sizes

Item Size inches Size mm

PC Board 8.6 x 6.0 218.44 x 152.4

Main Panel Plate 14.0 x 8.75 355.6 x 222.25

Aux Panel Plate 2.0 x 7.0 50.8 x 177.8

PC Board and Panel Plate Sizes
Item	Size inches	Size mm
PC Board	8.6 x 6.0	218.44 x 152.4
Main Panel Plate	14.0 x 8.75	355.6 x 222.25
Aux Panel Plate	2.0 x 7.0	50.8 x 177.8

The following assumes that you have completed installing and soldering all of the components onto the PC board.
Use a light gauge stranded wire (24 or 26 gauge) for all panel wiring (this is for size and flexibility heavier gauge wire works fine too).
To begin the panel wiring phase you should complete the intra-panel wiring, i.e. wire the pots, jacks, switches and LEDs that are mounted on the panel to one another first.
I can say from experience that 99.9% percent of circuit problems are a result of incorrect panel wiring. I can't emphasize how important it is to get the panel wiring right. Follow the steps below to insure that your panel is wired correctly. The procedure may seem tedious but this method is far less tedious than trying to find the problem after everything is wired together and in the case.

Print several copies of the panel wiring image on legal size paper in landscape orientation.
Look it over carefully.
Mark the wire you are about to install on the drawing.
Install the wire.
Review the drawing and confirm that you installed it correctly.
Highlight that wire with a marker.
Move on to the next wire and continue as above until all wires are highlighted.
Look over the drawing for any unmarked wires and make sure to install them.
Go through the wiring again using another printout this time just confirming and marking that each wire is there.

Before beginning to wire the board to the panel you should already have built your case and know the orientation that the board will have in relation to the panel. This will also let you determine how long the wires will need to be (with sufficient slack) to reach from the panel to the case mounted board.
Wire the points on this diagram to the corresponding points on the PC Board. I used several colors of wire and used a separate color for each circuit section. Doing so makes each section's wiring easy to identify. As I completed the wiring for a section I wire tied the wires for that section together loosely to make the remaining wiring easier. Don't go nuts with the wire ties just yet because you may need to trace individual wires if you need to trouble shoot later. The more time you take to do a neat wiring job the easier it will be later when you need to test, calibrate and possibly troubleshoot the circuitry.
Pot values with an 'AUD' are audio taper. All others are linear taper. The panel is designed with banana jacks in mind. I used two colors, one for inputs and one for outputs. The knobs (or knob skirts) for your pots should not be much over 1/2" in diameter or they will obscure the front panel pot legends.
The holes for the LEDs are 2/10 inch in diameter which is the size of a general purpose LED. I recommend installing them into the panel using the super glue that has the consistency of regular glue or a rubber or silicon cement. To keep them from sticking out of the panel too far you can use a small metal or plastic washer or two that has a diameter similar to the LED and catches on the LED's lip.
It is important to ground the front panel so that the pot bodies are grounded to reduce EMI noise. This can be accomplished by using a round crimp-on wire terminal (Radio Shack as well as most auto parts stores sell these) that you use at one of the front plate mounting hole sites. The crimped on connector is secured between the case and the front panel by the front plate mounting screw and in this manner makes a solid contact with it. Run the crimped-on wire that is in contact with the front plate to the power supply ground.

Sound Lab ULTIMATE Panel Wiring Diagram (Rear View)

IMPORTANT: Panel wiring point MXD (on R134) does not connect to the PCB.

Wiring point MXD occurs once on the control panel and once on the external input phone jack panel drawing. It indicates that the tip connector of the jack labeled MXD gets connected to the lug of R134 marked MXD in the panel diagram. Using COAX will shield the external input signal from noise generated within the synth (high slew rate changes, VCO, LFO, etc).

Click the panel wiring image below to see a larger one or click here for a scalable PDF version.

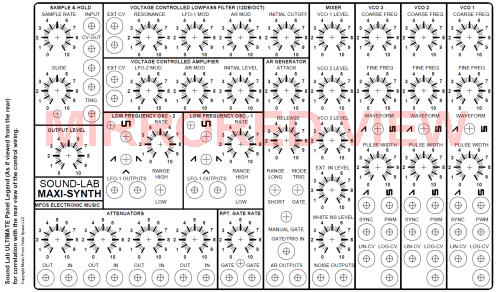

Sound Lab ULTIMATE Panel Silk Screen (Mirror View For Panel Wiring Correlation)

Click the panel silk screen image below to see a larger one or click here for a scalable PDF version.

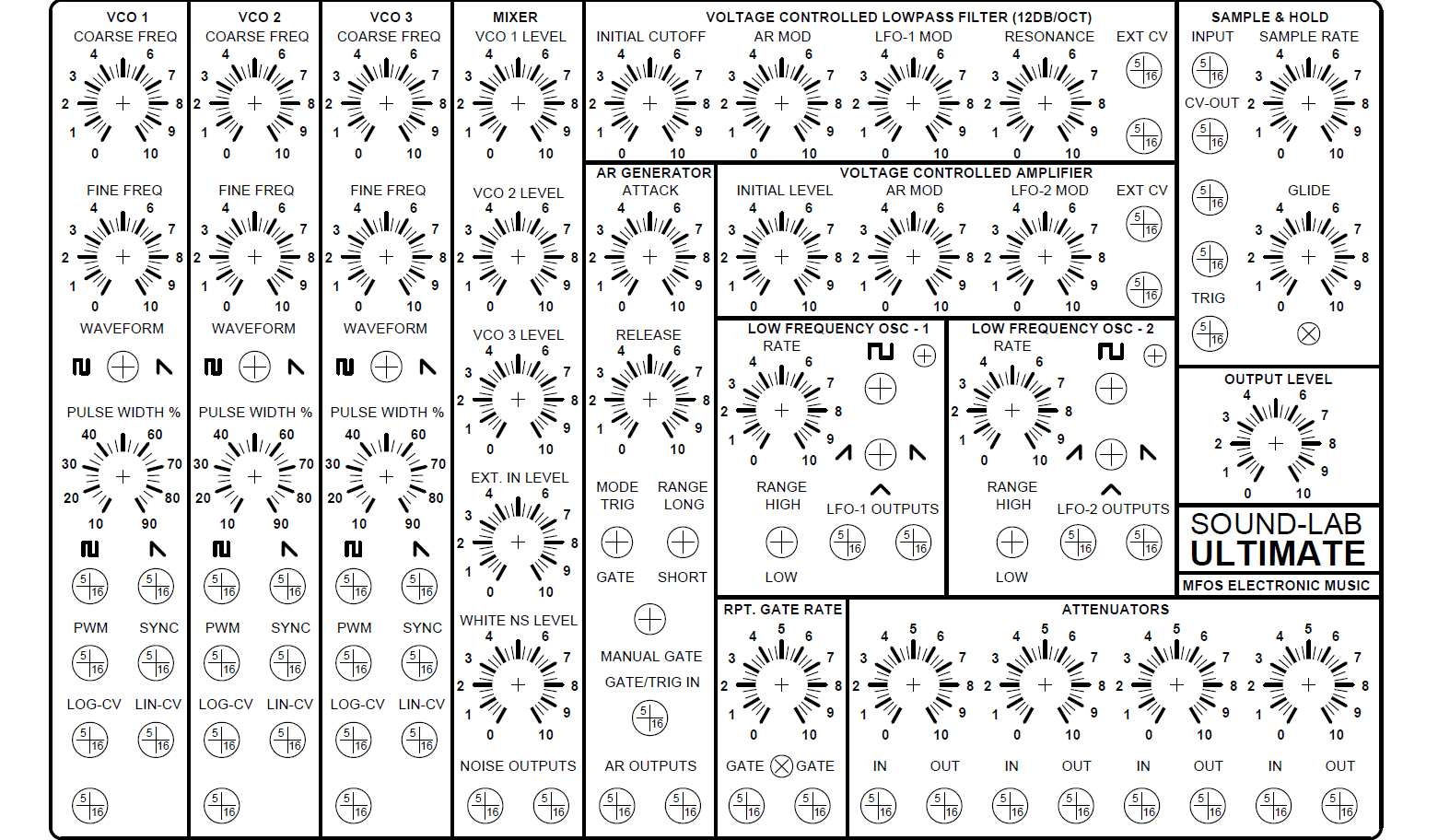

Sound Lab ULTIMATE Panel Silk Screen (Front View)

Click the panel silk screen image below to see a larger one or click here for a scalable PDF version.
The PDF image can be printed out on legal size paper 8.5" x 14" and decoupaged onto a metal or wood panel for use as the front plate. If a non-conductive material is used the pot bodies should all be grounded. You can adhere aluminum or copper tape to the material before installing the pots. I use this technique when making prototypes. Make sure the material is not too thick or you won't be able to put the mounting hardware onto the pots and switches properly. The professionally machined and silk screened panel I sell is pretty much perfect for the project. Buying one will save you a lot of time and effort.

Sound Lab ULTIMATE Auxiliary Panel Wiring (Rear View)

Click here for a scalable PDF version.

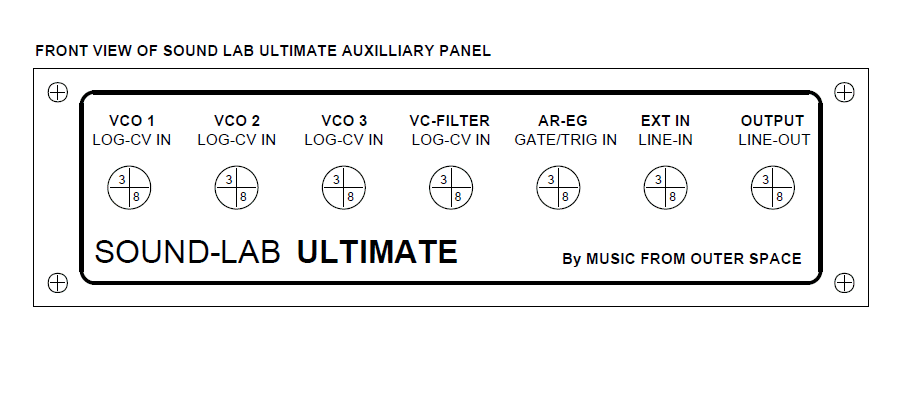

Sound Lab ULTIMATE Auxiliary Panel Silk Screen (Front View)

Click here for a scalable PDF version.

*The following assumes that you have completed installing and soldering all of the components onto the PC board.* Use a light gauge stranded wire (24 or 26 gauge) for all panel wiring (this is for size and flexibility heavier gauge wire works fine too). To begin the panel wiring phase you should complete the intra-panel wiring, i.e. wire the pots, jacks, switches and LEDs that are mounted on the panel to one another first. I can say from experience that 99.9% percent of circuit problems are a result of incorrect panel wiring. I can't emphasize how important it is to get the panel wiring right. Follow the steps below to insure that your panel is wired correctly. The procedure may seem tedious but this method is far less tedious than trying to find the problem after everything is wired together and in the case. Print several copies of the panel wiring image on legal size paper in landscape orientation. Look it over carefully. Mark the wire you are about to install on the drawing. Install the wire. Review the drawing and confirm that you installed it correctly. Highlight that wire with a marker. Move on to the next wire and continue as above until all wires are highlighted. Look over the drawing for any unmarked wires and make sure to install them. Go through the wiring again using another printout this time just confirming and marking that each wire is there. Before beginning to wire the board to the panel you should already have built your case and know the orientation that the board will have in relation to the panel. This will also let you determine how long the wires will need to be (with sufficient slack) to reach from the panel to the case mounted board. Wire the points on this diagram to the corresponding points on the PC Board. I used several colors of wire and used a separate color for each circuit section. Doing so makes each section's wiring easy to identify. As I completed the wiring for a section I wire tied the wires for that section together loosely to make the remaining wiring easier. Don't go nuts with the wire ties just yet because you may need to trace individual wires if you need to trouble shoot later. The more time you take to do a neat wiring job the easier it will be later when you need to test, calibrate and possibly troubleshoot the circuitry. Pot values with an 'AUD' are audio taper. All others are linear taper. The panel is designed with banana jacks in mind. I used two colors, one for inputs and one for outputs. The knobs (or knob skirts) for your pots should not be much over 1/2" in diameter or they will obscure the front panel pot legends. The holes for the LEDs are 2/10 inch in diameter which is the size of a general purpose LED. I recommend installing them into the panel using the super glue that has the consistency of regular glue or a rubber or silicon cement. To keep them from sticking out of the panel too far you can use a small metal or plastic washer or two that has a diameter similar to the LED and catches on the LED's lip. It is important to ground the front panel so that the pot bodies are grounded to reduce EMI noise. This can be accomplished by using a round crimp-on wire terminal (Radio Shack as well as most auto parts stores sell these) that you use at one of the front plate mounting hole sites. The crimped on connector is secured between the case and the front panel by the front plate mounting screw and in this manner makes a solid contact with it. Run the crimped-on wire that is in contact with the front plate to the power supply ground.
Sound Lab ULTIMATE Panel Wiring Diagram (Rear View)
IMPORTANT: Panel wiring point MXD (on R134) does not connect to the PCB. Wiring point MXD occurs once on the control panel and once on the external input phone jack panel drawing. It indicates that the tip connector of the jack labeled MXD gets connected to the lug of R134 marked MXD in the panel diagram. Using COAX will shield the external input signal from noise generated within the synth (high slew rate changes, VCO, LFO, etc).
Click the panel wiring image below to see a larger one or click here for a scalable PDF version.

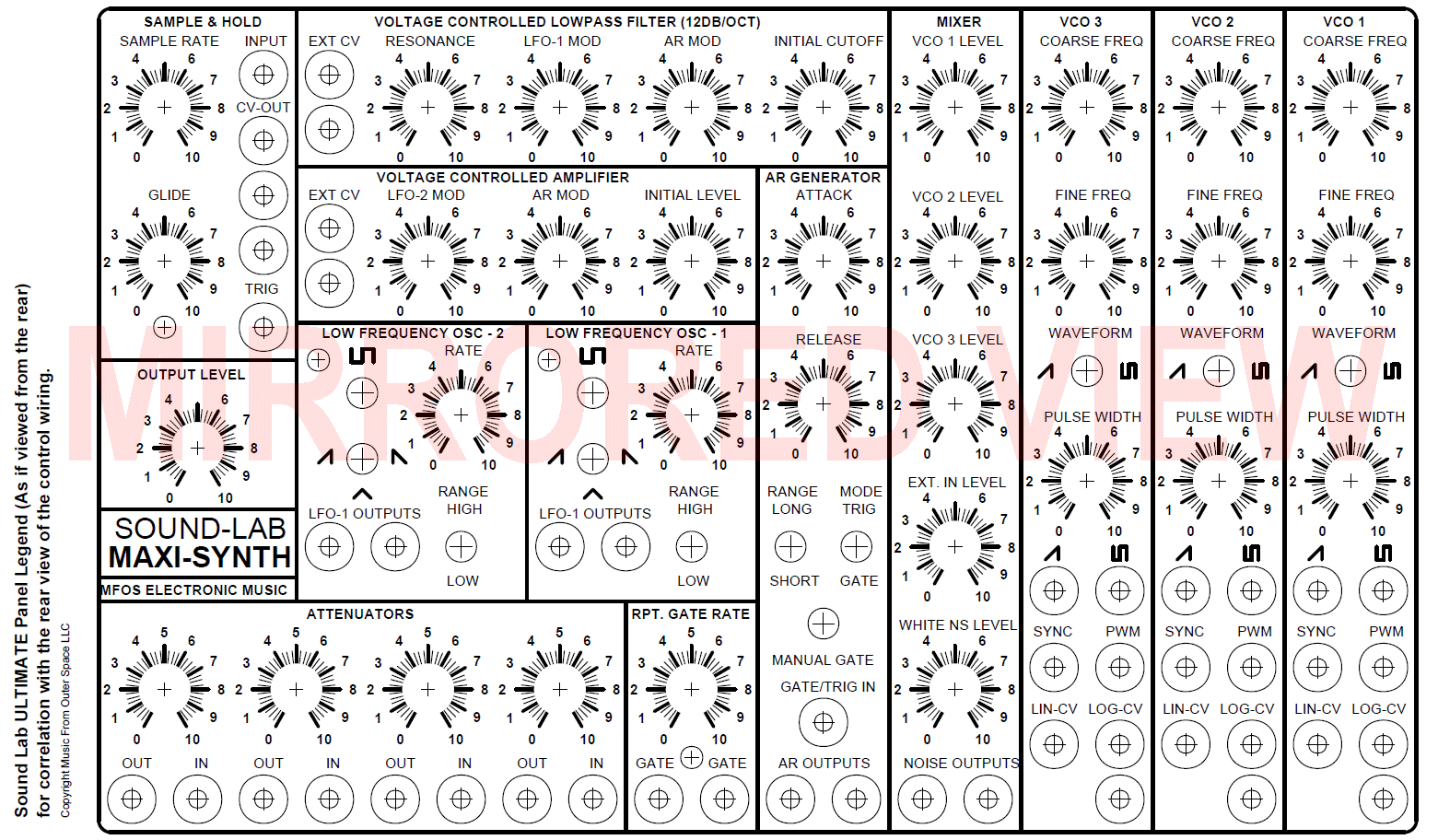

Sound Lab ULTIMATE Panel Silk Screen (Mirror View For Panel Wiring Correlation)
Click the panel silk screen image below to see a larger one or click here for a scalable PDF version.


Sound Lab ULTIMATE Panel Silk Screen (Front View)
Click the panel silk screen image below to see a larger one or click here for a scalable PDF version. The PDF image can be printed out on legal size paper 8.5" x 14" and decoupaged onto a metal or wood panel for use as the front plate. If a non-conductive material is used the pot bodies should all be grounded. You can adhere aluminum or copper tape to the material before installing the pots. I use this technique when making prototypes. Make sure the material is not too thick or you won't be able to put the mounting hardware onto the pots and switches properly. The professionally machined and silk screened panel I sell is pretty much perfect for the project. Buying one will save you a lot of time and effort.


Sound Lab ULTIMATE Auxiliary Panel Wiring (Rear View)
Click here for a scalable PDF version.


Sound Lab ULTIMATE Auxiliary Panel Silk Screen (Front View)
Click here for a scalable PDF version.
